Mower Deck Openings

THIS PAGE IS UNDER CONSTRUCTION. PICTURES OF MOWER DISCHARGE OPENINGS ARE CONSTANTLY BEING ADDED.

IF YOU NEED ASSISTANCE PLEASE CALL US AT 570 226-6093

Please look at our photo gallery of mower deck discharge openings. We have listed the catcher part number and the bracket number (if needed) that you will need to purchase. Once you find your mower's opening, and confirm that it is the same, go to our Grass Catcher & Extensions page to order your catcher. If you need an additional bracket go to our Brackets & Adapters page.

If you cannot find your mower on our list, and cannot find a picture of the discharge opening, please take a picture of your mower's discharge opening with the deflector shield up. Email the picture along with your contact information, brand, model and deck size of your mower to rackemmfg@aol.com. We will confirm which catcher will fit your mower.

MAKE SURE THAT THE DISCHARGE OPENING STICKS OUT FURTHER THAN THE REAR WHEEL. IF IT DOES NOT, THE CATCHER WILL RUB AGAINST THE REAR WHEEL, RUINING THE WHEEL AND THE CATCHER.

Ariens 36" order catcher part #RC-OB4

Ariens #2552XL order catcher part #RC-B4

Ariens Gear Drive Walk Behind 36" 2009 & after order catcher part #RC-OB4

Ariens Pro Zoom Stand-on order catcher part #RC-OB4

Ariens XL Zoom Max 60" order catcher part #RC-EX4 & bracket part #RB-UN

Ariens Zoom Riders 48XL 54" & 61" order catcher part #RC-EX4 & bracket part #RB-UN

Bad Boy Elite & Pro Series 42" 54" 60" & 72" order catcher part #RC-EX4 & bracket part #RB-UN

Bad Boy Riders 2009 & after (except CZT) order catcher part #RC-EX4 & bracket part #RB-UN

Bad Boy Riders MZ order catcher part #RC-EX4 & bracket part #RB-UN

Bad Boy Stand-on All Decks order catcher part #RC-EX4 & bracket part #RB-UN & RB-DP

Big Dog T Series Walk Behind 36" 48" & 54" - must remove plate order catcher part #RC-OB4

Big Dog X1052 2009 & after (must drill hole on front of deck) order catcher part #RC-EX4

Billy Goat FM-3301 order catcher part #RC-S3 & bracket part #RB-DP

Bobcat 2000 & prior order catcher part #RC-GB4

Bobcat 2001 - 2005 order catcher part #RC-EX4

Bobcat 2006 & after order catcher part #RC-EX4

Bobcat Fast Cat RZ 52" order catcher part #RC-EX4

Bobcat Floating Deck - Models 936600, 936601, & 936602" order catcher part #RC-EX4 & bracket part RB-FPEX

Bobcat Procat 2009 order catcher part #RC-EX4

Bobcat 2011 Rider 48" 52" & 61" order catcher part #RC-EX4 & bracket part RB-BC

Bobcat Rider Zero Turn order catcher part #RC-EX4

Bobcat Walk Behind 2001 thru 2011 order catcher part #RC-EX4

Bradley Havener 36" 48" & 52" order catcher part #RC-EX4 & bracket part #RB-RH

Bunton 2000 & prior order catcher part #RC-GB4

Bunton 2006 & after order catcher part #RC-EX4

Bush Hog ES2052 order catcher part #RC-GB4

Country Clipper order catcher part #RC-B4 & bracket part #RB-CC

Country Clipper 52" order catcher part #RC-EX4 & bracket part #RB-UN

Country Clipper Jazee Pro 48" 52" & 60" order catcher part #RC-EX4 & bracket part #RB-UN

Cub Cadet Gear series order catcher part #RC-OB4

Cub Cadet Tank LZ & SZ Rider order catcher part #RC-EX4 & bracket part #RB-UN

Cub Cadet Tank Rider L48 48" order catcher part #RC-OB4

Cub Cadet Walk Gear G-1236 order catcher part #RC-OB4

Cub Cadet Walk Gear G-1548 order catcher part #RC-OB4

Cub Cadet Walk Hydro H-1536 order catcher part #RC-EX4 & bracket part#RB-UN

Cub Cadet Walk Hydro H-1748 order catcher part #RC-EX4 & bracket part #RB-UN

Cub Cadet Walk Hydro H-1952 order catcher part #RC-EX4 & bracket part #RB-UN

Cub Cadet Z Force Rider 48" 52" & 60" order catcher part #RC-OB4

Dixon Rider DX-161 61" order catcher part #RC-EX4

Dixon Rider DX-100 48" & 61" order catcher part #RC-EX4

Encore order catcher part #RC-EX4

Encore Pro-Line Walker/Rider order catcher part #RC-EX4

Encore Prowler Walker 36"- must drill hole in deck order catcher part #RC-EX4

Encore Prowler Walker/Rider 61"- must drill hole in deck order catcher part #RC-EX4

Everride 36" order catcher part #RC-OB4

Exmark ALL Walker/Rider 2009 & after (except Quest Rider) order catcher part #RC-EX4

Exmark Lazer order catcher part #RC-EX4

Exmark Metro & Metro HP 36-48-52 order catcher part #RC-EX4

Exmark Phazer Walk Behind 34" order catcher part #RC-EX4

Exmark Ranger 48" Early 80s order catcher part #RC-EX4

Exmark Trivantage order catcher part #RC-EX4

Exmark Turf Tracer order catcher part #RC-EX4

Exmark Viking-36-48-52 order catcher part #RC-EX4

Ferris order catcher part #RC-OB4

Ferris Comfort Control DD Walk Behind 36" order catcher part #RC-OB4

Ferris Comfort Control Walk Behind 52" order catcher part #RC-OB4

Ferris Evolution Rider 36" 48" & 52" order catcher part #RC-OB4 & bracket part #RB-DP

Ferris Hydro Cut Walk Behind 36" - must remove plate order catcher part #RC-OB4

Ferris lS Series 48" 52" & 61" order catcher part #RC-OB4 & bracket part #RB-DP

Gravely 2001 Thru 2005 order catcher part #RC-B4

Gravely 2006 & after order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Compact Pro Rider 34" order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Pro 1548G - 2002 order catcher part #RC-B4

Gravely Pro Turn 148 Rider 48" order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Pro Turn 252 order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Pro Turn 260 2012 order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Pro Walk Behind order catcher part#RC-OB4

Gravely Pro Walk Behind 36G 48H & 61H order catcher part #RC-OB4

Gravely Pro Rider order catcher part #RC-EX4 & bracket part #RB-UN

Gravely Stand-on Pro Stance 52" order catcher part #RC-OB4

Gravely ZT-52-HD Rider order catcher part #RC-EX4 & bracket part #RB-UN

Great Dane 48-52 decks 2003 & prior order catcher part #RC-EX4

Great Dane 52 decks 2004 & after order catcher part #RC-EX4 & bracket part #RB-UN

Great Dane Scamper 36 order catcher part #RC-EX4

Husqvarna Rider LZ4817 48" order catcher part #RC-EX4

Husqvarna Rider MZ 54" & 61" order catcher part #RC-EX4

Husqvarna Rider M-ZT-6 order catcher part #RC-EX4

Husqvarna Rider P-ZT 60" order catcher part #RC-EX4 & bracket part #RB-UN & RB-DP

Husqvarna RZ 4222F order catcher part #RC-EX4 & bracket part #RBFPEX

Hustler Fastrak Rider 48" order catcher part #RC-OB4

Hustler Fastrak Rider 54" - must remove plate order catcher part #RC-OB4

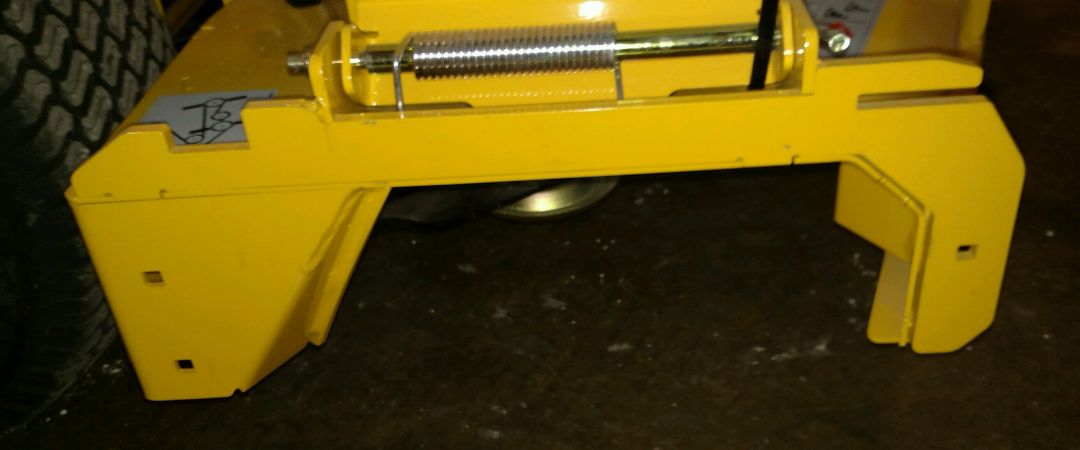

Hustler Fastrak Super S 2016 & after order catcher part #RC-B4

Hustler Super Z 60" order catcher part #RC-EX4

Hustler Trim Star Walk Behind 36", 48" & 52" order catcher part #RC-OB4

Hustler VX4 Rider 48" - must drill hole in deck order catcher part #RC-EX4

Hustler X1I Rider 52" & 60" - must drill hole in deck order catcher part #RC-EX4

Jacobsen 2003 & after order catcher part #RC-B4

John Deere G15 order catcher part #RC-OB4 & bracket part #RB-DP

John Deere Stand-on 48" 52" & 61" order catcher part #RC-EX4 & bracket part #RB-JD

John Deere Walk Behind WG-32A order catcher part #RC-OB4

John Deere Walk Behind WG-36A order catcher part #RC-OB4

John Deere Walk Behind WG-48A order catcher part #RC-OB4

John Deere Walk Behind WH-52A order catcher part #RC-OB4

Kubota ZG Series Rider 48" & 52" order catcher part #RC-OB4 & bracket part #RB-DP

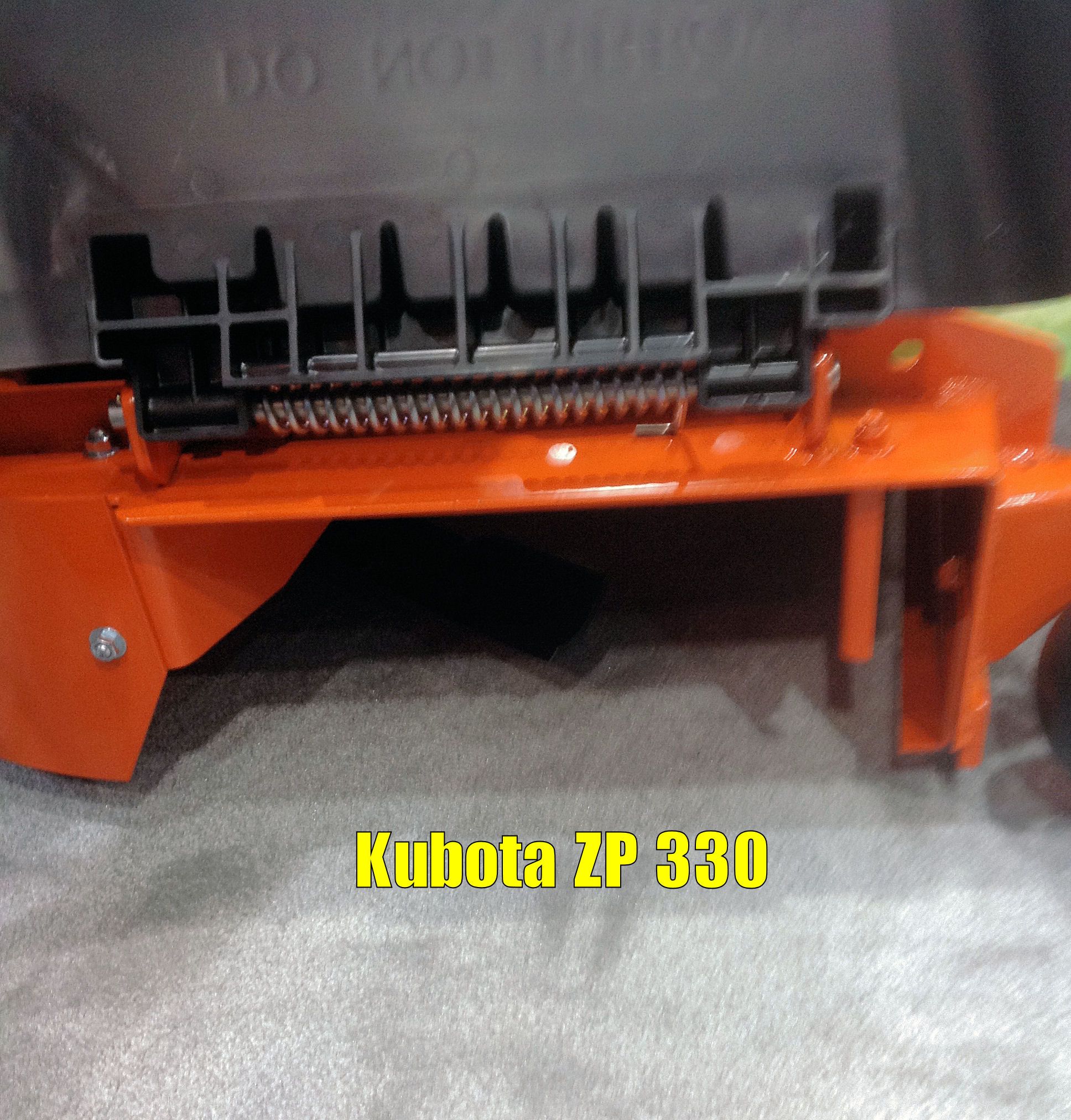

Kubota ZP-330 order catcher part #RC-OB4 & bracket part #RB-DP

Lesco order catcher part #RC-OB4

Red Hawk order catcher part #RC-EX4 & bracket part #RB-RH

Scag order catcher part #RC-OB4

Scag Advantage deck order catcher part #RC-OSB4

Scag Freedom Rider 36" & 48" 2009 order catcher part #RC-OB4

Scag Freedom Rider 48" 52" & 61" order catcher part #RC-OB4 & bracket part #RB-DP

Scag Velocity Deck 48" & 52" order catcher part #RC-OVB4

Scag V-Ride Stand-On order catcher part #RC-OB4

Simplicity Citation Rider 52" order catcher part #RC-OB4 & bracket part #RB-DP

Simplicity Rider 48" & 52" order catcher part #RC-OB4 & bracket part #RB-DP

Snapper 2006 & prior order catcher part #RC-EX4

Snapper 36120K Walk Behind order catcher part #RC-EX4

Snapper Pro - 2011 Stand-on order catcher part #RC-OB4 & bracket part #RB-DP

Snapper Pro 32" Walk Behind order catcher part #RC-OB4

Snapper Pro 36" Walk Behind order catcher part #RC-EX4 & bracket part #RB-UN

Snapper Pro 48" Rider order catcher part #RC-EX4

Snapper Pro Rider 75 & Series order catcher part #RC-OB4 & bracket part #RB-DP

Snapper Pro S-50 Rider order catcher part #RC-OB4

Snapper Pro S-50X Rider order catcher part #RC-EX4 & bracket part #RB-UN

Snapper Pro SW Walk Behind Series order catcher part #RC-OB4

Steiner ZTM series order catcher part #RC-EX4

Toro 2000 & prior order catcher part #RC-EX4

Toro 2001 - 2010 order catcher part #RC-EX4 & bracket part #RB-TORO

Toro 2011 Walker/Rider order catcher part #RC-EX4

Toro NEW Titan order catcher part #RC-EX4 & bracket part #RB-UN

Toro Regular Deck order catcher part #RC-EX4

Toro Turbo Force Z500 order catcher part #RC-EX4 & bracket part#RB-TORO

Toro Z Cut order catcher part #RC-EX4 & bracket part #RB-TORO

World Lawn Cobra Rider 48" order catcher part #RC-EX4

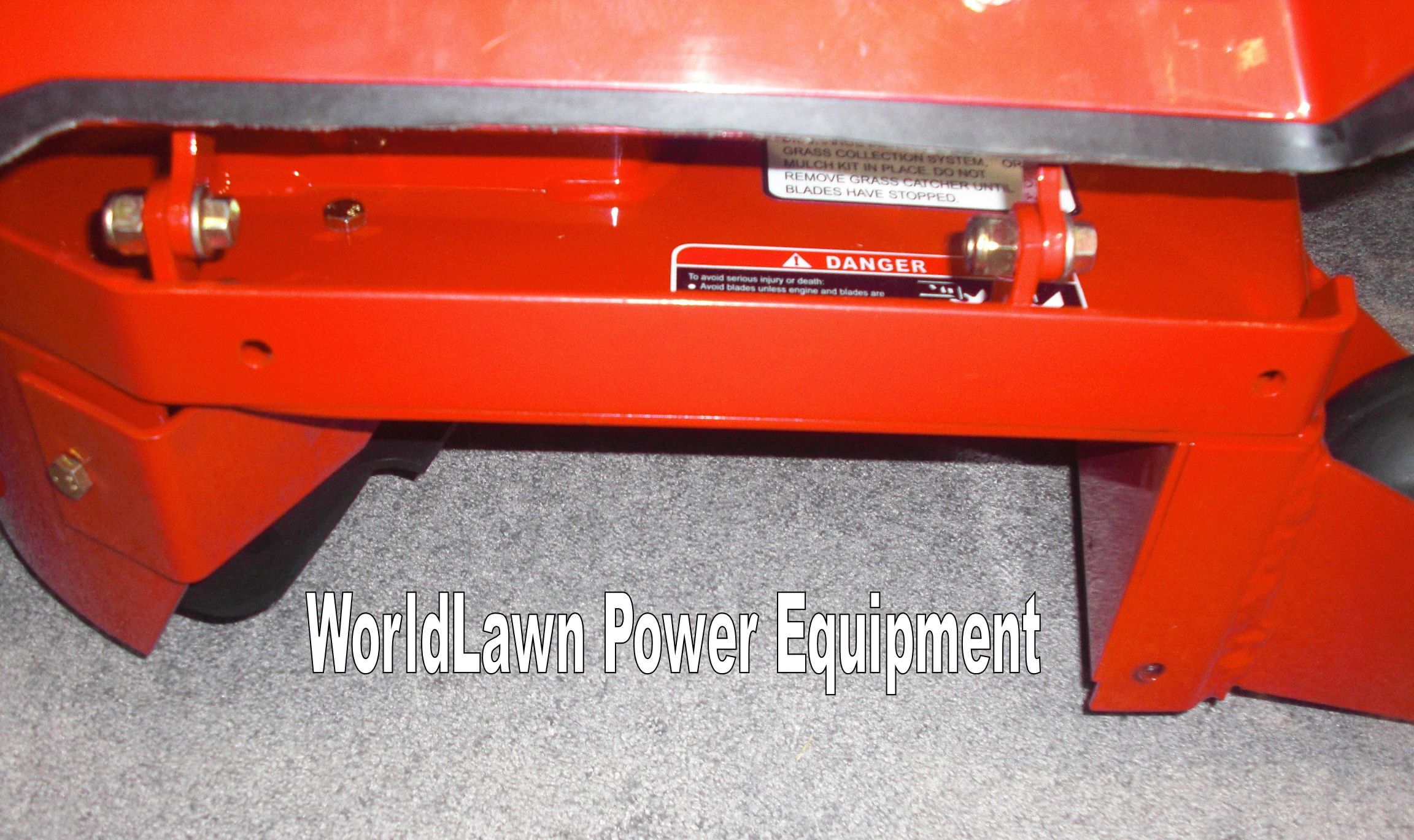

World Lawn Power Equipment Walker/Rider 48" 52" & 61" order catcher part #RC-EX4

World Lawn Venom 48" 52" & 62" order catcher part #RC-EX4

World Lawn Walk Behind 36" order catcher part #RC-EX4

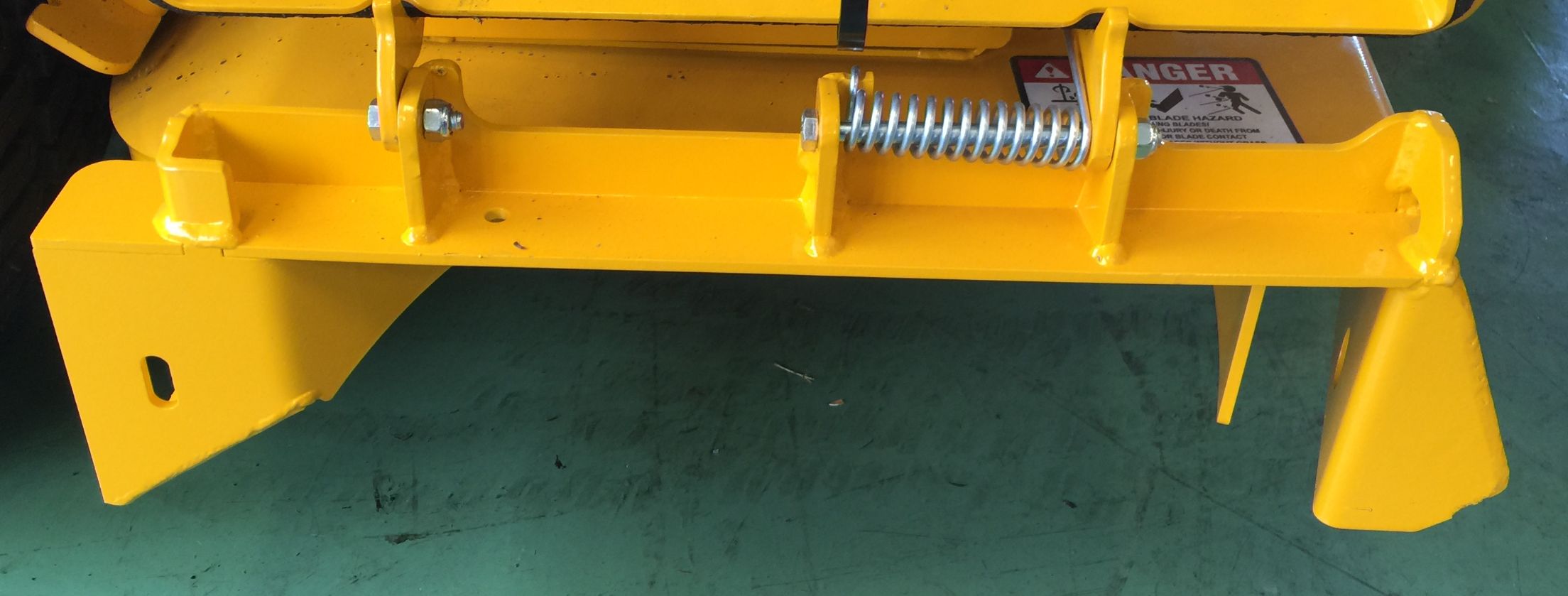

Wright - Stander & Velky Walk Behinds order catcher part #RC-B4

YazooKees 2006 & Prior order catcher part #RC-EX4

YazooKees Eagle Star 48" order catcher part #RC-EX4

YazooKees KHKW 36140 & 48170 order catcher part #RC-EX4

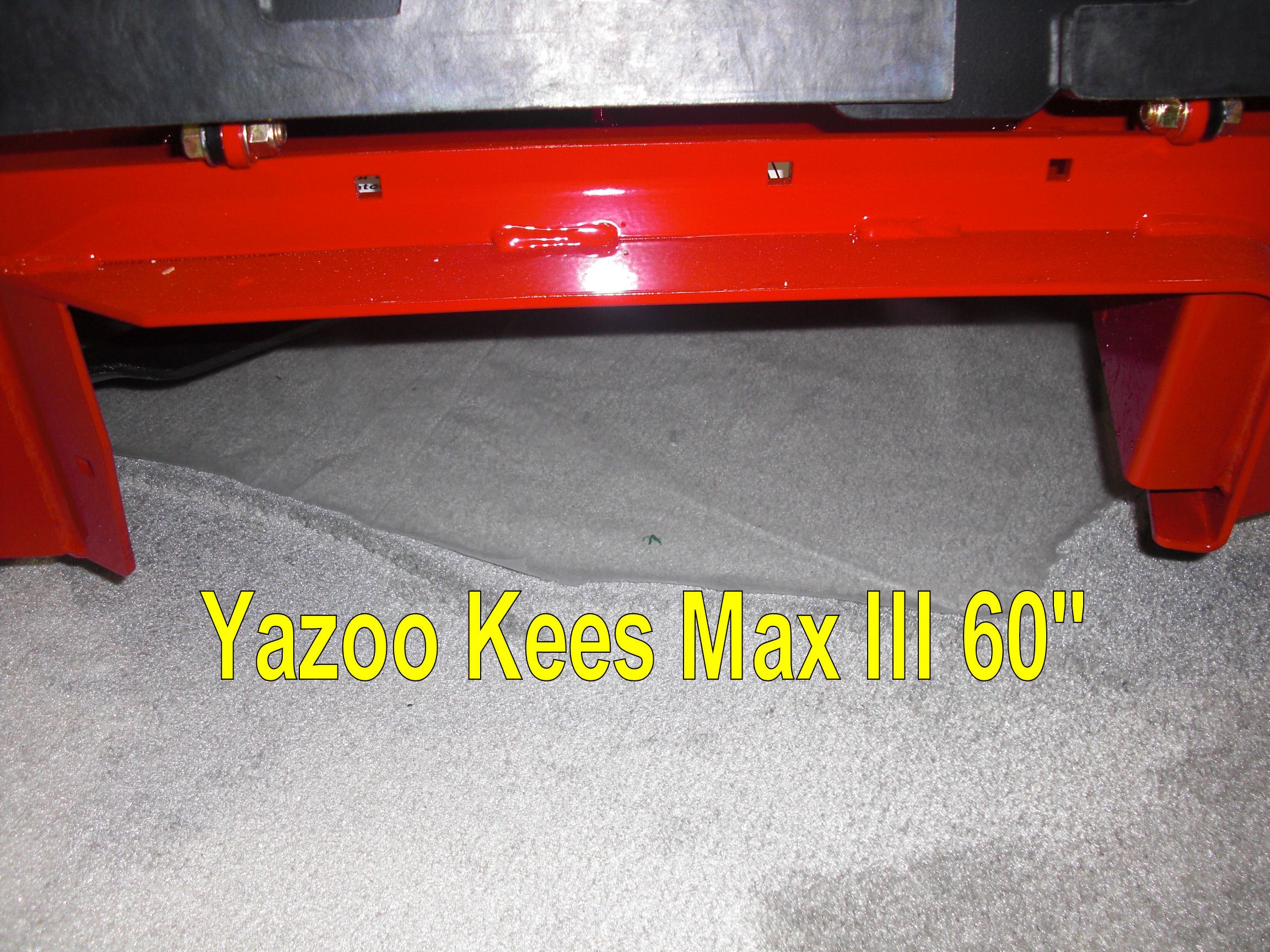

YazooKees Max III 60" Rider order catcher part #RC-EX4 & bracket part #RB-UN

YazooKees Mid Max ZT 52" Rider order catcher part #RC-EX4
